THE TWO WHEELED DEATH MACHINE LIVES

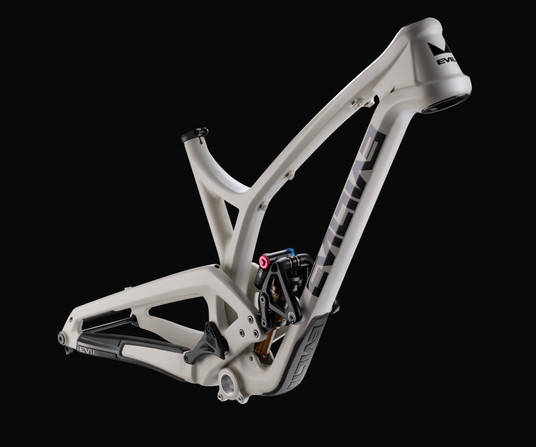

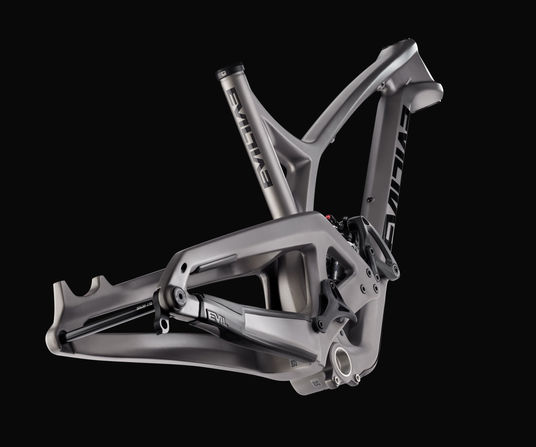

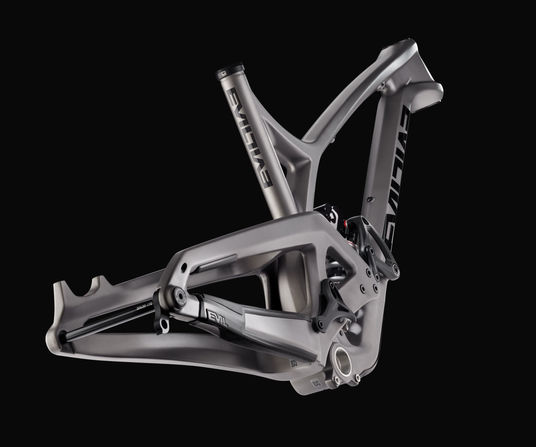

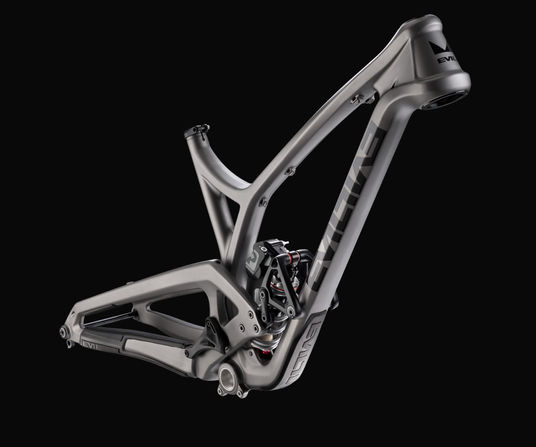

Fresh from the science lab the updated Insurgent LB has broken out of its test tube and is back with a vengeance. The Insurgent was the 27.5" wheeled bike we didn’t even want to make. But as it turns out, the Insurgent has proven itself to be a hell raiser, ready to separate your tires from your rims in every corner. The short snappy chainstays, low bottom bracket and long top tube make shredding just a little bit better’er. Without trying to re-invent the wheel, we added boost rear axle spacing, and two fresh new colors; Freddy Mercury and Yogurt Truck. We also managed to shave almost a half-pound off the overall frame weight while improving ride quality. You just know it’s just gunna be lighter, fastest and gnarlier than ever before. Most importantly, we added water bottle cage mounts because it turns out that people like to drink water while they ride their bikes.
THE BALANCE OF FUN, POP AND CRUSHING ROCK GARDENS
The original Insurgent was born in a time of turmoil, 26 was dying, 27.5 and 29 were the flavour of the day and nobody could decide which one they liked better. We tuned out the noise, busted out of the trends and made a bike that’s fun and had us slashing corners, ripping single track and hitting jump lines. It didn’t disappoint us then, and now it’s just a little bit better’er.
The Insurgent LB is ready to suit your shredding needs. If your favorite past-time is racking up king-of-the-mountain accents and padding your strava stats then you can choose between a RockShox Monarch Plus or the Fox DPX2 rear shock to convert all your power into momentum with mind bending traction and a dependable feeling of plushness. If you prefer sending-it-to-flat, upgrade to the Push ElevenSix, which turns the bike into a square-edge-hit, traction generating, and bottomless feeling two wheeled death machine
If you're into pedalling all day, try a 150mm fork and set the flip chips to the LOW position and enjoy a 74.8° seat angle while the 66.1° head angle keeps the descents in control and the party level high. But if you're into enduro bro, or even better, slashing berms at bike parks, try a 160mm or 170mm fork with the flip chips in the XLOW position and experience a slack and low slung corner destroying play bike that likes to jump and square off corners.
EVIL INSURGENT

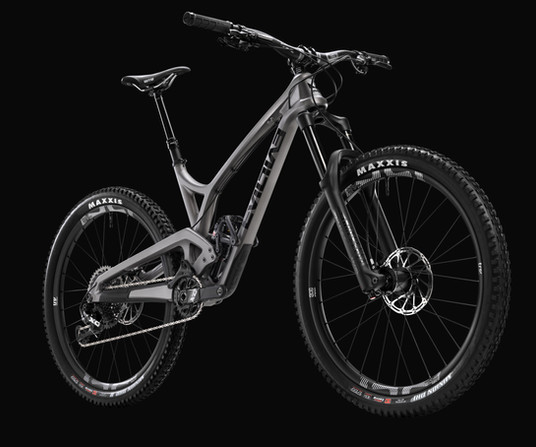

The hard charging, berm destroying, 27.5" wheeled unicorn has been reborn. Complete with boost rear axle spacing, improved ride feel, fresh colors and water bottle mounts. The Insurgent LB will have you slashing corners, hitting jump lines, and shredding single-track with an uncontrollable cackling and roost-a-flying feeling of fun that’ll make life just a little bit better’er.
FRAME PRICE: With Monarch plus RC3 $6,050.00
COMPLETE BIKE GX Eagle, Monarch plus $11,550
COMPLETE BIKE XO Eagle, Monarch plus $n/a
COMPLETE BIKE XO AXS $a/a
ORDER YOURS TODAY
THE DEVIL IS
IN THE DETAILS
FEATURE01
BOLT ON AXLE
Our new axle bolts directly into the derailleur hanger for stiff hassle free operation.
FEATURE02
CUSTOM ISCG05 MOUNTS
Custom ISCG05 tabs to accommodate our lower guide collaboration with e13 components.
FEATURE03
DELTA SYSTEM
Completely redesigned with a focus on simplicity, weight reduction and strength. We increased lateral frame stiffness with redesigned dog bone links that use integrated forged bosses to connect the linkage and simplify maintenance.
FEATURE04
DOWNTUBE PROTECTOR
Molded Rubber Downtube Protector keeps rocks and debris off the plastic and quiets the ride.
FEATURE05
INTEGRATED CHAINGUIDE
Fully integrated carbon chainguide to keep that chain on.
FEATURE06
INTERNAL ROUTING
Internal routing for stealth dropper posts. Rear derailleur and brake routing is cleanly routed under the toptube and the rear derailleur cable is internally routed through the swingarm to keep things tidy.
FEATURE07
PLASTIC FANTASTIC
Uni Directional Carbon with One Piece Molded construction from one of the best factories in the business.
FEATURE08
RUBBER PROTECTION
Integrated rubber protection for the chainstay and seat stay to keep things peaceful and quiet in the woods.
FEATURE09
SAG METER
We added a fancy integrated SAG meter into the non-drive side Delta Link to make suspension set up easy. Push it forward, sit on your bike, adjust air pressure to 30%, then shred.
FEATURE10
LIGHTER LAY UP
A new lighter layup improves the overall ride quality, maximizing compliance where we wanted and stiffness where we needed.
BUILD KIT SPECS
XO EAGLE BUILD
Available Sizes
Small, Medium, Large, XLarge
Frame
EVIL Insurgent 151mm Travel UD Carbon, Internal Dropper Routing, Integrated Upper Guide, BOOST
Shock
Rockshox Monarch Plus RC3 Debonair, 200x57 (+2 Volume Spacers)
Headset
FSA Integrated Tapered No.57/68 Upper Bearing 30.2x41x6.5 36˚/45˚ Lower Bearing 40×51.8×8 36˚/45˚
Headset Spacers
Poly Spacers 5mm black
Fork
Rockshox Lyrik Charger 2 RC2, 27.5, Solo Air, 160mm Travel, DebonAir, 15x100
Handlebar
Raceface SIXC Carbon 35, Rise: 35mm Width: 800mm
Stem
Raceface Turbine R 35, Length: 40mm
Grips
Evil Lock-on
Brake - Front
SRAM Code RSC
Brake - Rear
SRAM Code RSC
Rotor - Front
SRAM Center Line, 180mm
Rotor - Rear
SRAM Center Line, 180mm
Brake Adapter
Post to Post Mount Adapter
Shifter
SRAM X01 Eagle, 12sp
Rear Derailleur
SRAM X01 Eagle, 12sp
Cassette
SRAM XG-1295 Eagle, 10-50t:10,12,14,16,18,21,24,28,32,36,42,50
Chain
SRAM X01 Eagle w/Powerlock
Crankset
SRAM Eagle XO Carbon, DUB, 32t ring
Bottom Bracket
SRAM DUB 73mm BSA
Wheelset - Front
e*thirteen TRS Race Carbon, Internal Width: 31mm, 15x110
Wheelset - Rear
e*thirteen TRS Race Carbon, Internal Width: 31mm, 12x148
Tire - Front
Maxxis Minion DHF EXO TR, 27.5x2.3
Tire - Rear
Maxxis Minion DHR II EXO TR, 27.5x2.3
Tubes
27.5" tubes
Seatpost
Rockshox Reverb Stealth 30.9mm, S: 125mm(390mm), M: 150mm(440mm), L/XL: 170mm(480mm)
Saddle
WTB Silverado
* Specifications are subject to change without notice
GX EAGLE
Available Sizes
Small, Medium, Large, XLarge
Frame
EVIL Insurgent 151mm Travel UD Carbon, Internal Dropper Routing, Integrated Upper Guide, BOOST
Shock
Rockshox Monarch Plus RC3 Debonair, 200x57 (+2 Volume Spacers)
Headset
FSA Integrated Tapered No.57/68 Upper Bearing 30.2x41x6.5 36˚/45˚ Lower Bearing 40×51.8×8 36˚/45˚
Headset Spacers
Poly Spacers 5mm black
Fork
Rockshox Lyrik Charger 2 RC2, 27.5, Solo Air, 160mm Travel, DebonAir, 15x110
Handlebar
Raceface Chester 35, Rise: 35mm Width: 780mm
Stem
Raceface Aeffect R 35, Length: 40mm
Grips
Evil Lock-on
Brake - Front
Sram Guide RE
Brake - Rear
Sram Guide RE
Rotor - Front
Avid Center Line, 180mm
Rotor - Rear
Avid Center Line, 180mm
Brake Adapter
Post to Post Mount Adapter
Shifter
SRAM GX Eagle, 12sp
Rear Derailleur
SRAM GX Eagle, 12sp
Cassette
SRAM XG-1275 Eagle, 10-50t:10,12,14,16,18,21,24,28,32,36,42,50
Chain
SRAM GX Eagle w/Powerlock
Crankset
Descendent 6K, DUB, Direct Mount 32t ring
Bottom Bracket
Sram DUB 73mm BSA
Wheelset - Front
e*thirteen TRS, Internal Width: 30mm, 15x110
Wheelset - Rear
e*thirteen TRS, Internal Width: 30mm, 12x148
Tire - Front
Maxxis Minion DHF EXO TR, 27.5x2.3
Tire - Rear
Maxxis Minion DHR II EXO TR, 27.5x2.3
Tubes
27.5" tubes
Seatpost
RockShox Reverb Stealth 30.9mm, S: 125mm(390mm), M: 150mm(440mm), L/XL: 170mm(480mm)
Saddle
WTB Volt Pro
* Specifications are subject to change without notice
